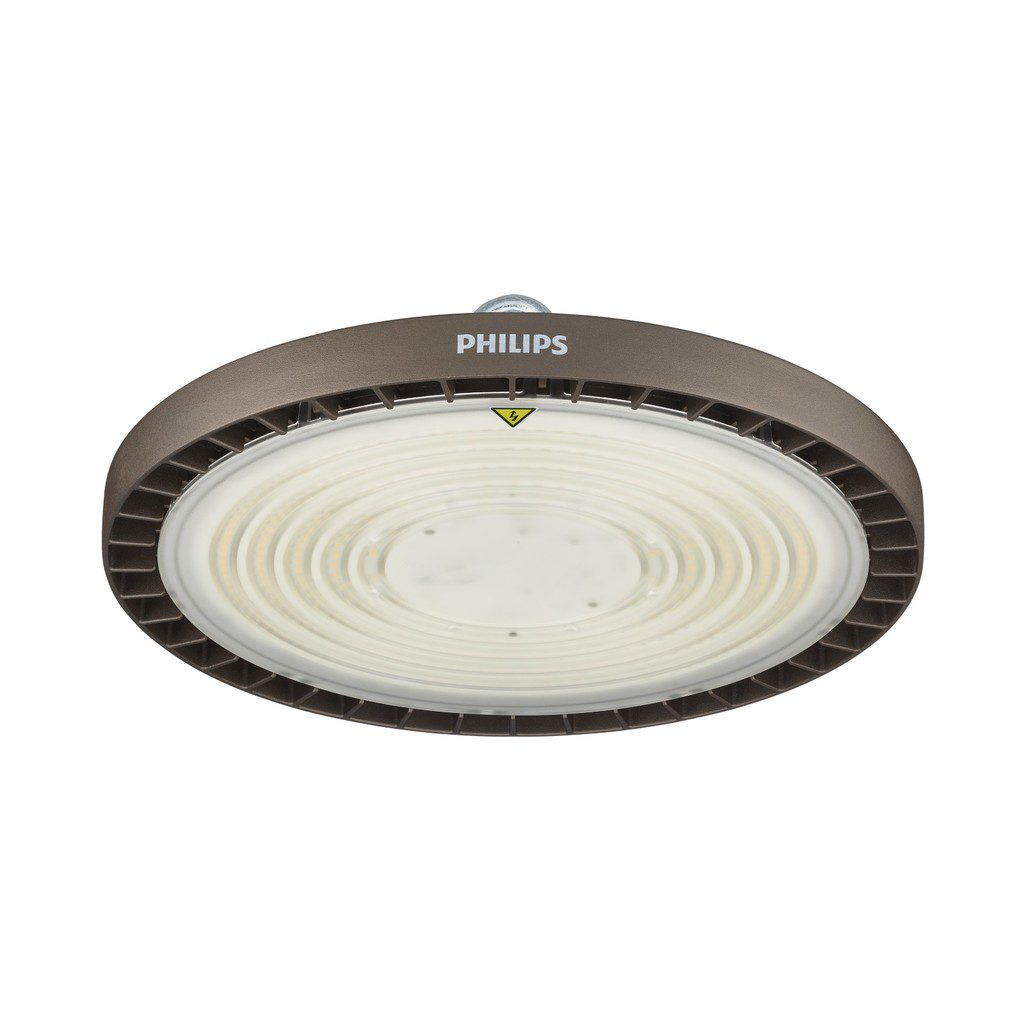

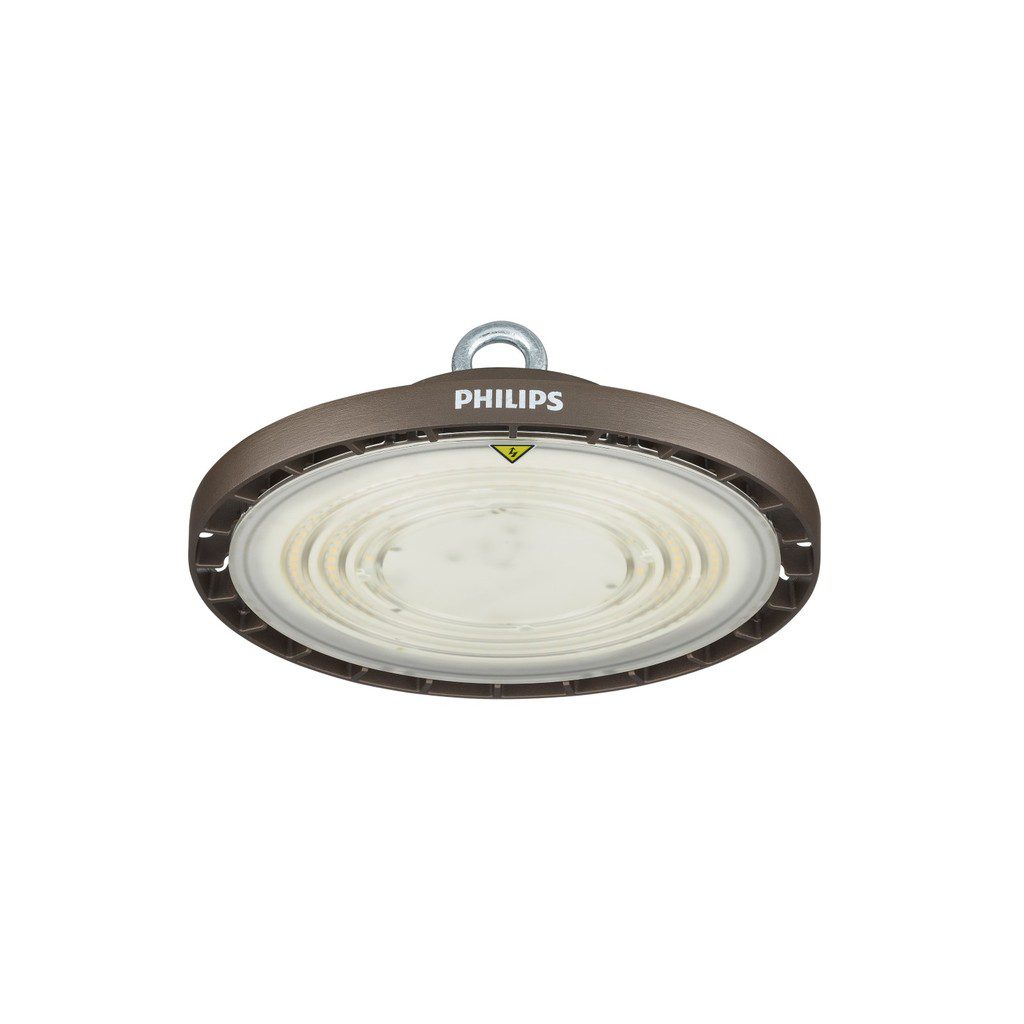

Philips Ledinaire High Bay

Philips Ledinaire Highbay for Reliable Industrial Lighting

The Philips Ledinaire Highbay was developed for professional applications where reliable performance, energy efficiency, and a competitive price are important. The fixture is suitable for warehouses, production halls, logistics facilities, and other industrial environments with high ceilings, among other applications.

Ledinaire Highbay combines the trusted quality of Philips with a simple design and quick installation. This makes this series particularly well-suited for projects that require a practical and cost-effective high-bay solution.

10,500, 20,000, and 28,000 lumens

The current Philips Ledinaire Highbay series is available in three brightness levels, allowing the fixture to be tailored to the size of the space and the desired illuminance.

• 10,500 lumens: 70 W
• 20,000 lumens: 133 W
• 28,000 lumens: 185 W

All current models have a luminous efficacy of 150 lm/W. This allows the Ledinaire Highbay to combine high light output with energy efficiency.

4,000 K neutral white light

The current Ledinaire Highbay models have a color temperature of 4000 K and a color rendering index (CRI) of >80. This neutral white light is widely applicable in industrial and logistics environments where bright, functional lighting is desired.

Wide 90° beam angle

The Philips Ledinaire Highbay features a wide 90° beam angle. This distributes the light over a large area, providing even illumination of open spaces.

This wide beam angle makes the fixture particularly suitable for general lighting in warehouses, production halls, and logistics areas. For projects with very high mounting heights or narrow aisles, Philips high-bay series with multiple optical options are more suitable.

IP65 and IK06

The Philips Ledinaire Highbay has an IP65 protection rating, which means it is protected against dust and water jets. The IK06 rating also provides protection against light mechanical impact.

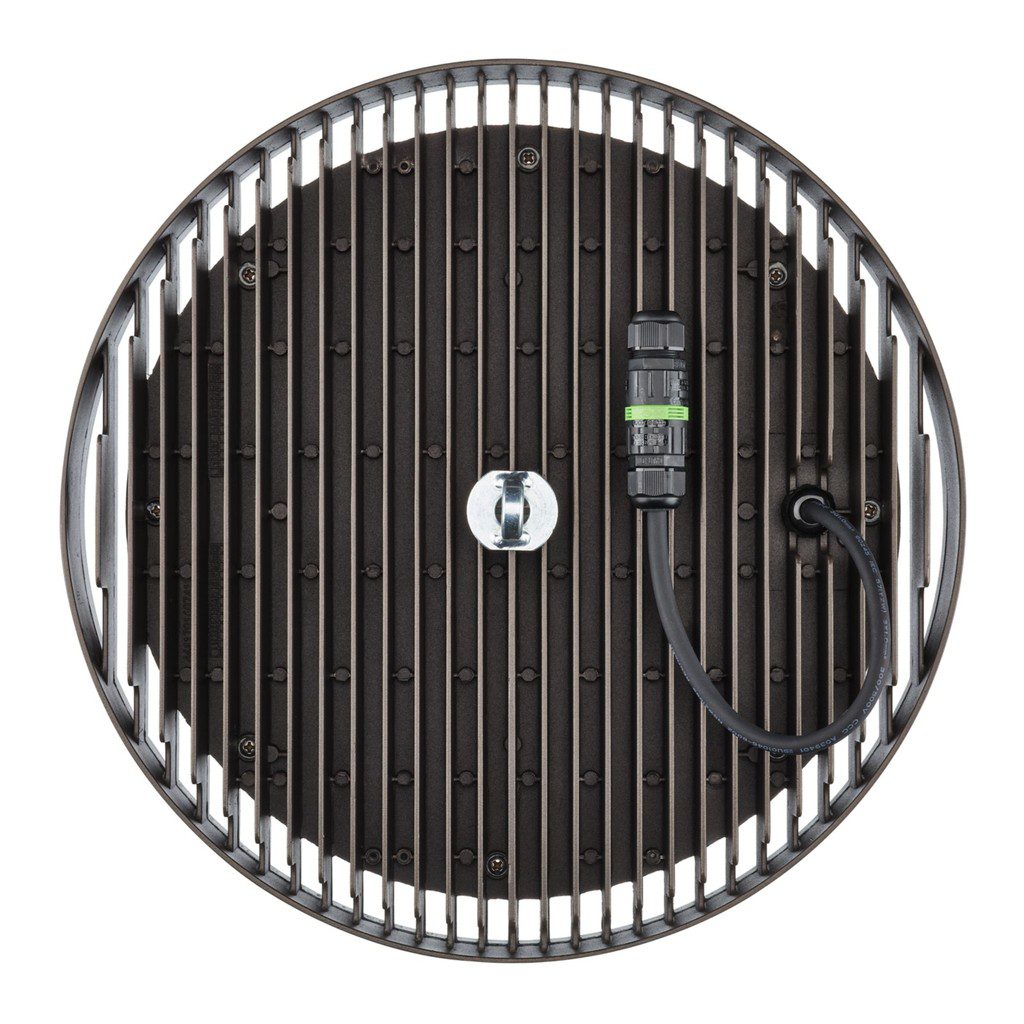

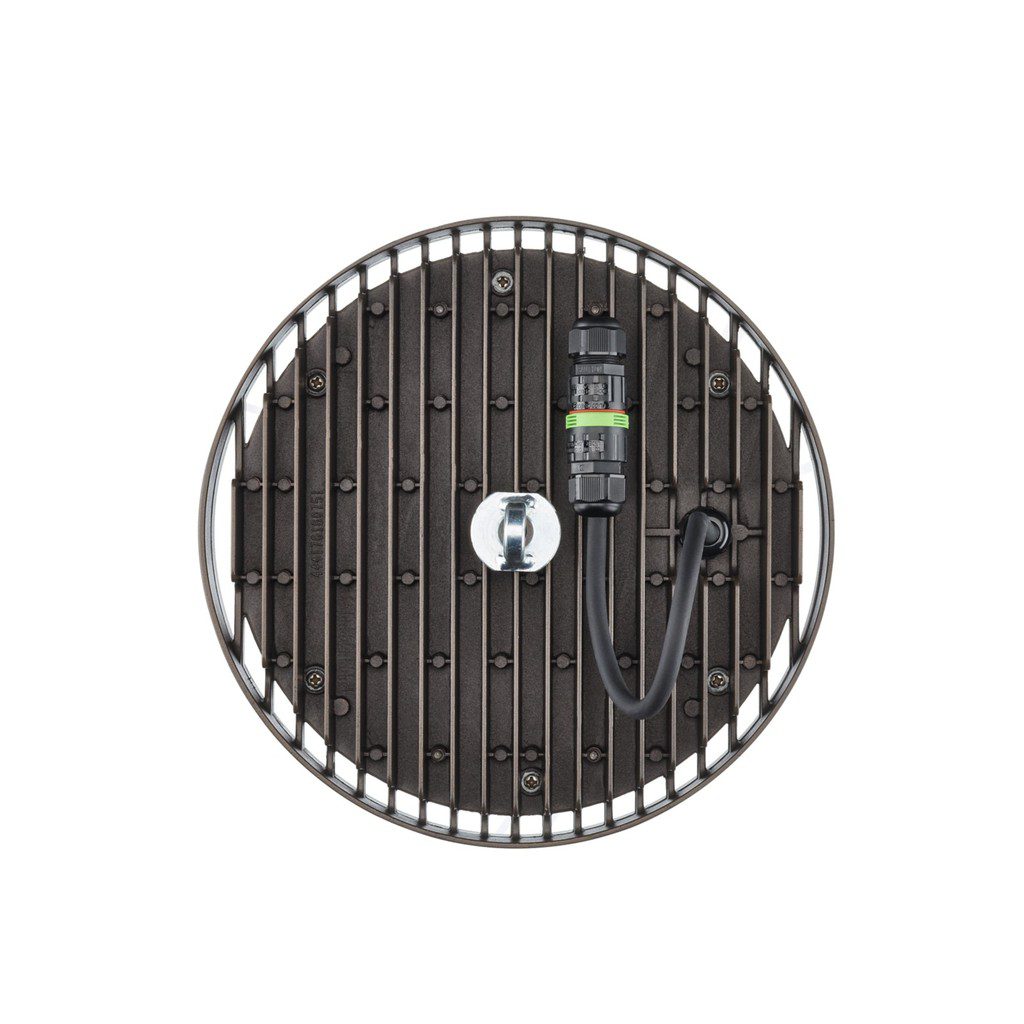

The housing is made of cast aluminum and features a polycarbonate shield. This makes the fixture suitable for many general industrial and logistics indoor environments.

Simple and flexible installation

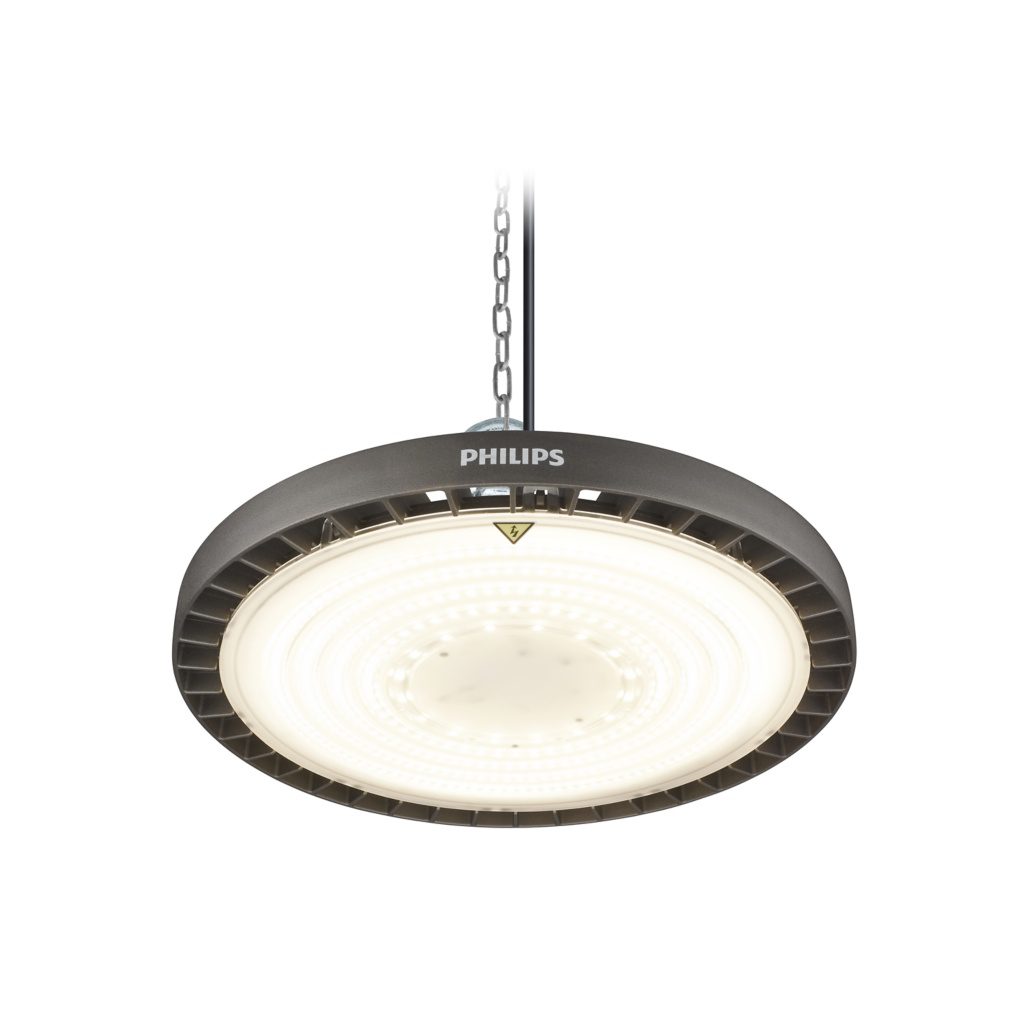

The Ledinaire Highbay is designed for quick installation. The fixture can be mounted using a central suspension point and, if desired, can be combined with an optional mounting bracket.

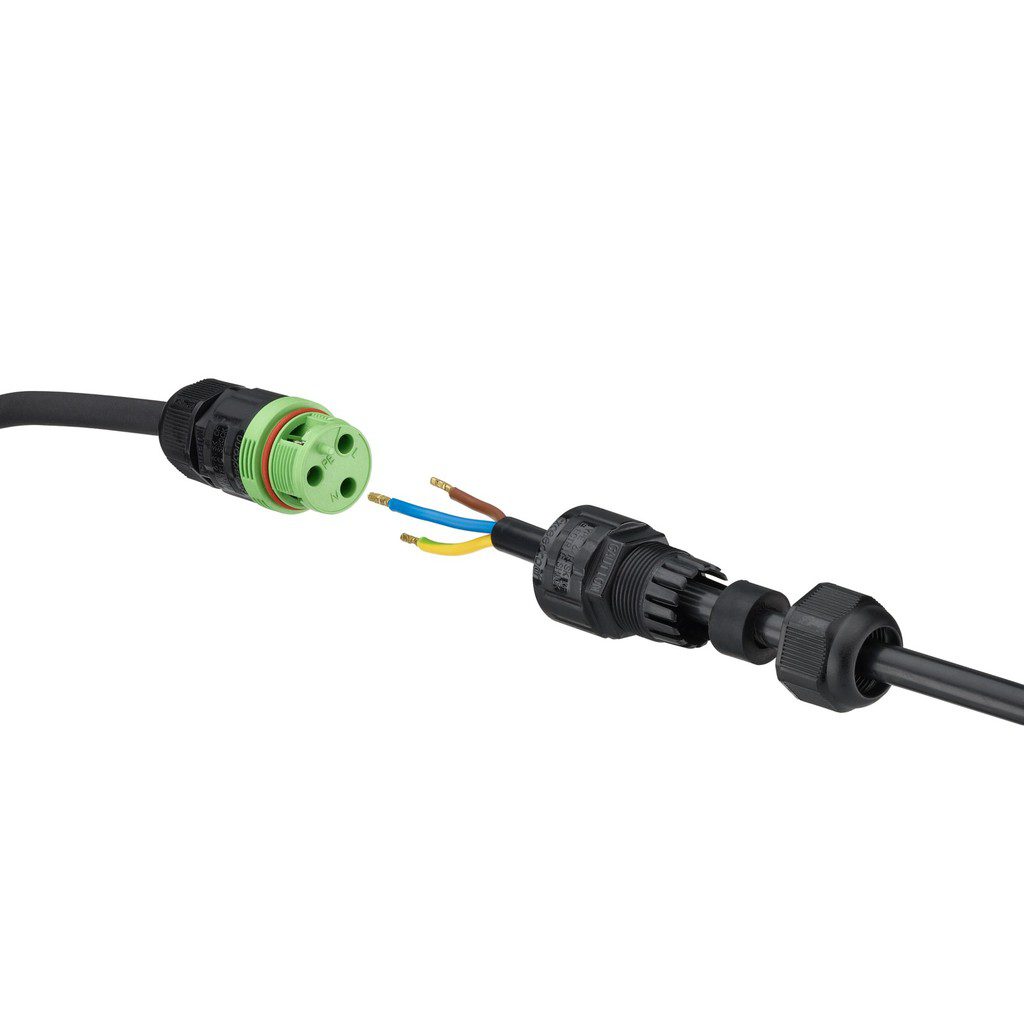

In addition, optional reflectors are available to adjust the light distribution and further reduce glare. An IP65 connection allows for easy on-site installation.

Long service life and low maintenance requirements

Signify specifies a lumen maintenance of L85 at 35,000 hours and L80 at 50,000 hours for the current Ledinaire Highbay models. This makes the series suitable for professional applications where a reliable and low-maintenance lighting solution is desired.

The current product specifications also state that the current models come with a 5-year warranty.

Applications of the Philips Ledinaire Highbay

• Warehouses
• Production Facilities
• Logistics Centers
• Storage Areas
• Workshops
• General commercial spaces with high ceilings

Browse the available Philips Ledinaire Highbay models and choose the right light output for your warehouse, production environment, or professional lighting project.
