Philips LuxSpace Compact DN610B

Philips LuxSpace Compact DN610B LED Recessed Downlight

The Philips LuxSpace Compact DN610B is a high-quality, professional LED recessed downlight designed for projects where energy efficiency, visual comfort, and a sleek ceiling appearance are important. The compact LuxSpace series combines high light output with extensive options for light distribution, color temperature, and professional lighting control.

Thanks to its wide range of configurations, the DN610B can be used in offices, educational institutions, healthcare facilities, retail stores, and high-profile business spaces, among other settings.

UltraEfficient up to approximately 187 lm/W

The latest UltraEfficient versions of the LuxSpace Compact achieve very high luminous efficacy. For example, a current configuration delivers 2,500 lumens at just 13.4 W, accounting for approximately 187 lm/W.

Other UltraEfficient models also combine high light output with low energy consumption, making the DN610B suitable for projects in which energy efficiency plays an important role.

UGR19 for comfortable task lighting

For the LuxSpace Compact, UGR19 Available as standard. This reduces annoying glare, making the downlight suitable for professional workspaces and other areas where long-term visual comfort is important.

The wide and even light distribution creates a comfortable lighting environment without the downlight itself being conspicuous on the ceiling.

Different light outputs

The DN610B series is available with a range of light outputs. Current configurations include, among others, approximately 1900, 2000, 2200, 2300, 2500, 2700, 4000, 4200, and 5900 lumens.

This allows the same luminaire family to be used for both standard workspaces and larger spaces or applications where higher illuminance is required.

3000 K, 4000 K, and Tunable White

Standard LuxSpace Compact models are available in, among others, 3,000 K and 4,000 K. For dynamic lighting concepts, there are also Tunable White models ranging from 2700 to 6500 K available.

With Tunable White, the color temperature can be adjusted throughout the day or depending on the application. This offers additional possibilities for professional office and building lighting.

High color rendering

In addition to standard models with a CRI >80, configurations are available with a high color rendering index of CRI >90. This ensures that colors and materials are reproduced accurately.

For example, a current UltraEfficient model with a CRI >90 delivers 1,900 lumens at 10.8 W while maintaining a UGR of 19.

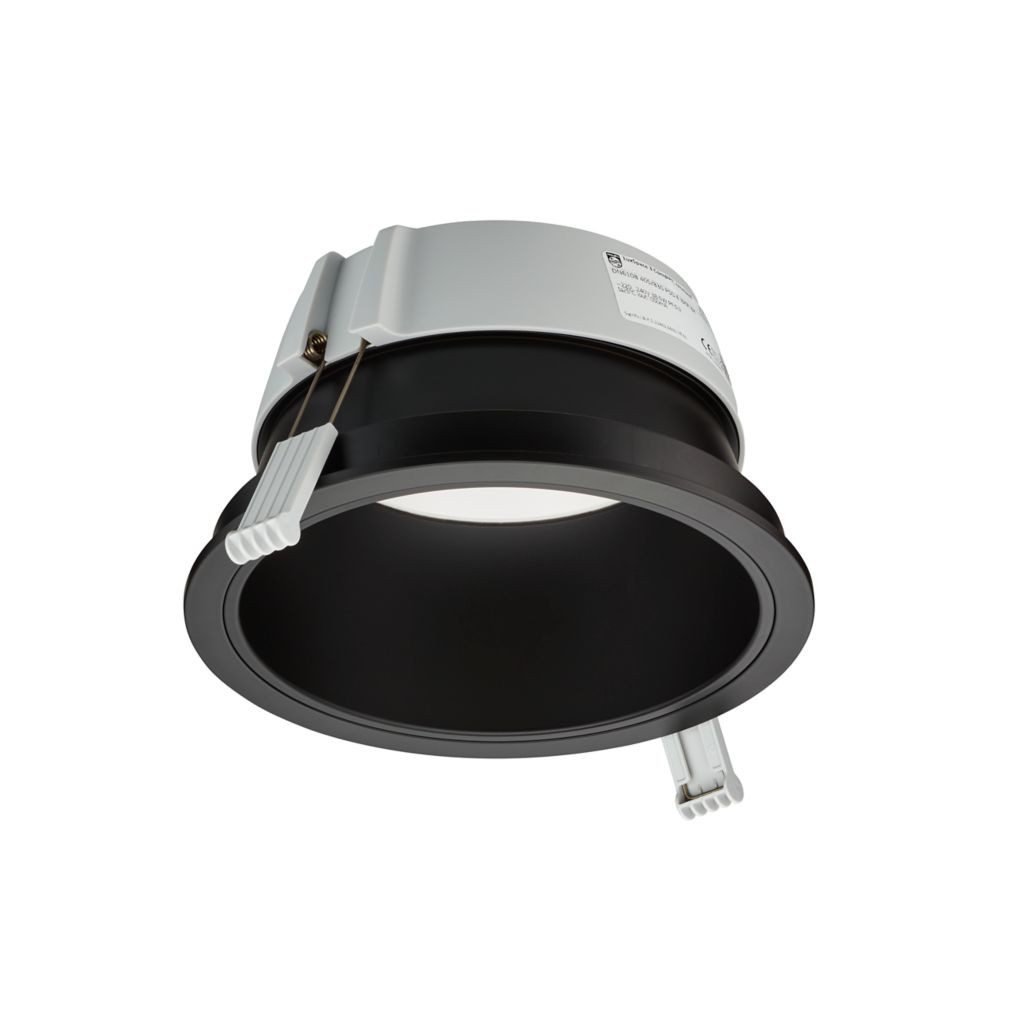

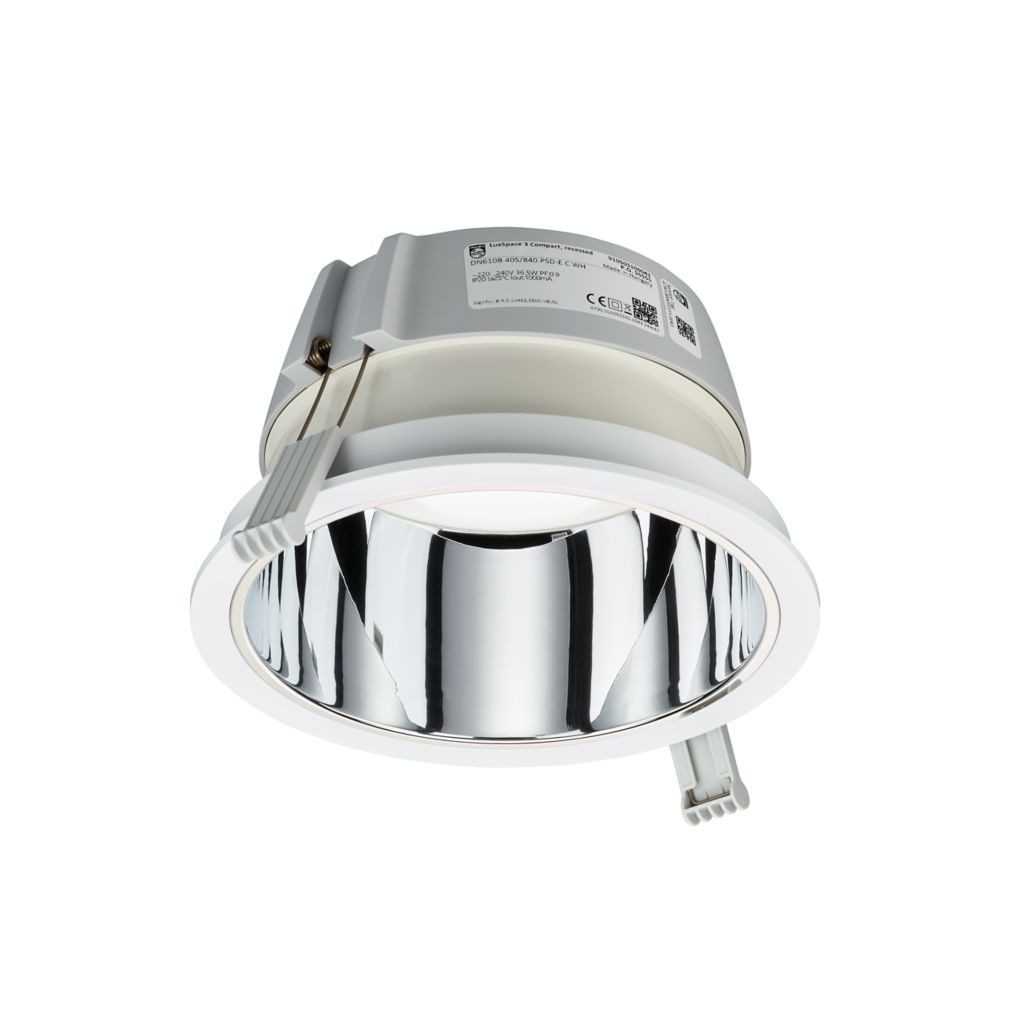

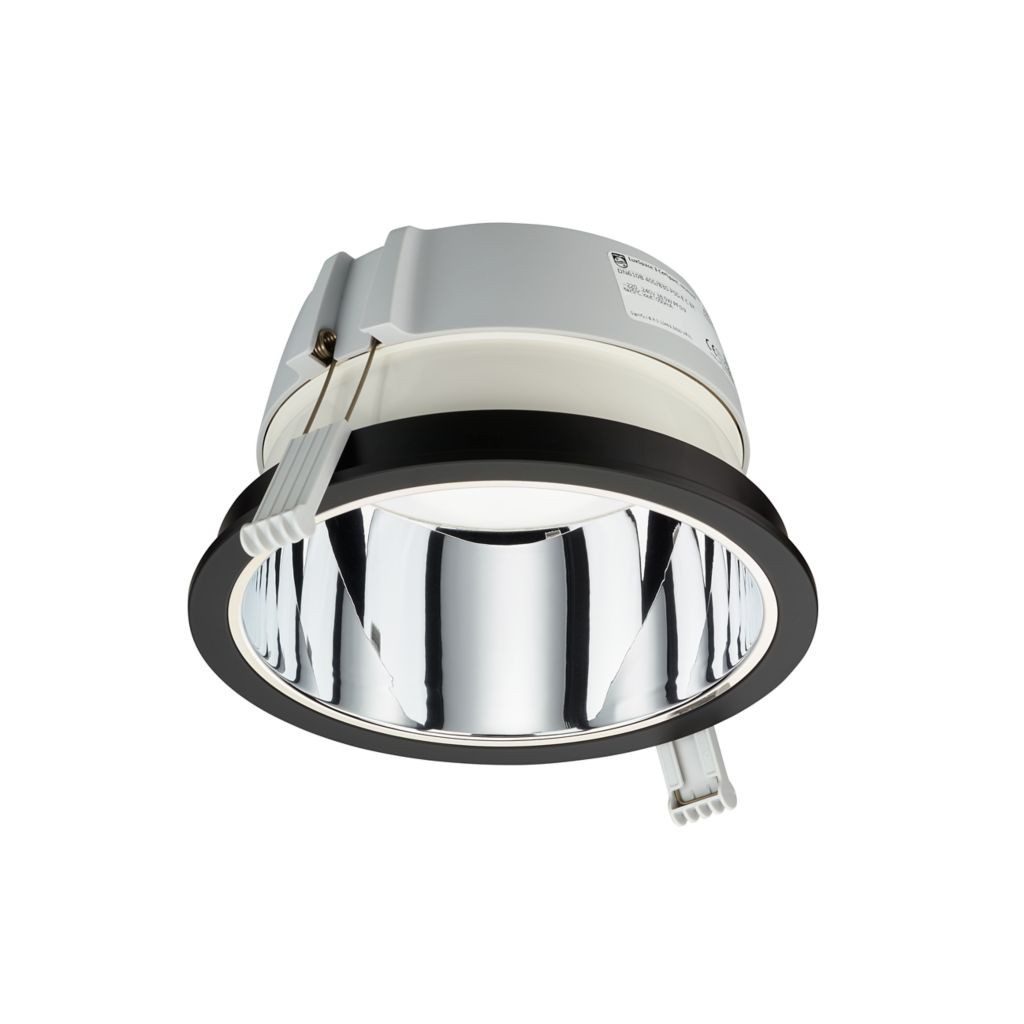

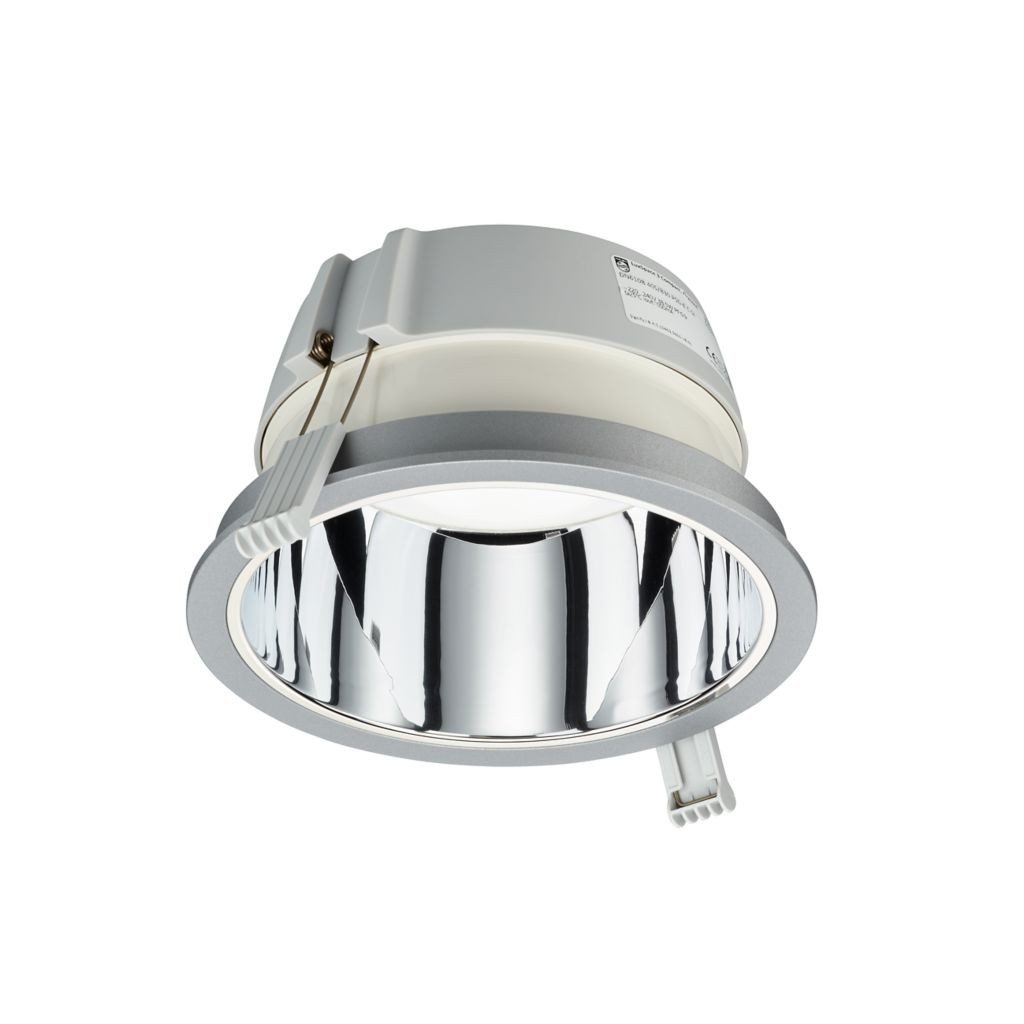

Choice of different reflectors

The LuxSpace Compact is available in a variety of optical finishes. Signify offers options including high-gloss, matte, white, black, and reflectors with blurred lines.

This allows both the light distribution and the appearance of the fixture to be tailored to the interior and the function of the space.

DALI and Interact

In addition to standard switchable models, DN610B variants are available with DALI control. This allows the light level to be controlled centrally and enables the downlight to be integrated into professional lighting control systems.

Also Interact Ready-models are available. These offer capabilities for intelligent lighting control and integration with sensors and building management systems.

Flexible ceiling integration

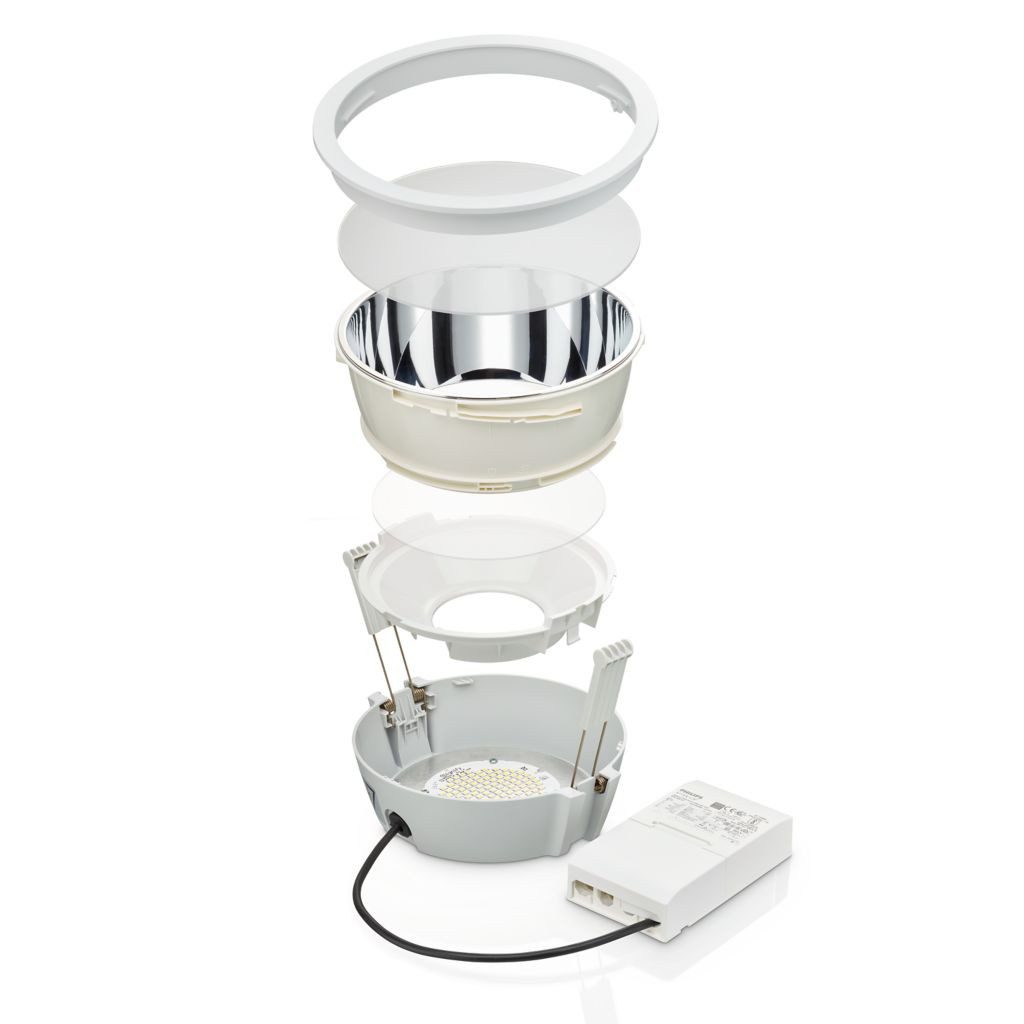

The DN610B was developed as a compact, round recessed downlight and is available with various trim rings and reflector finishes. In addition to standard ceiling integration, solutions are available for a virtually seamless finish in stucco ceilings.

Models with additional options, such as IP54 protection on the front, emergency lighting, and feed-through wiring, are also available.

Long service life

Signify specifies a useful service life of 50,000 hours at L90. As a result, the series has been designed for long-term professional use while maintaining a high level of its original light output.

Applications

• Offices
• Educational Institutions
• Health Care
• Retail

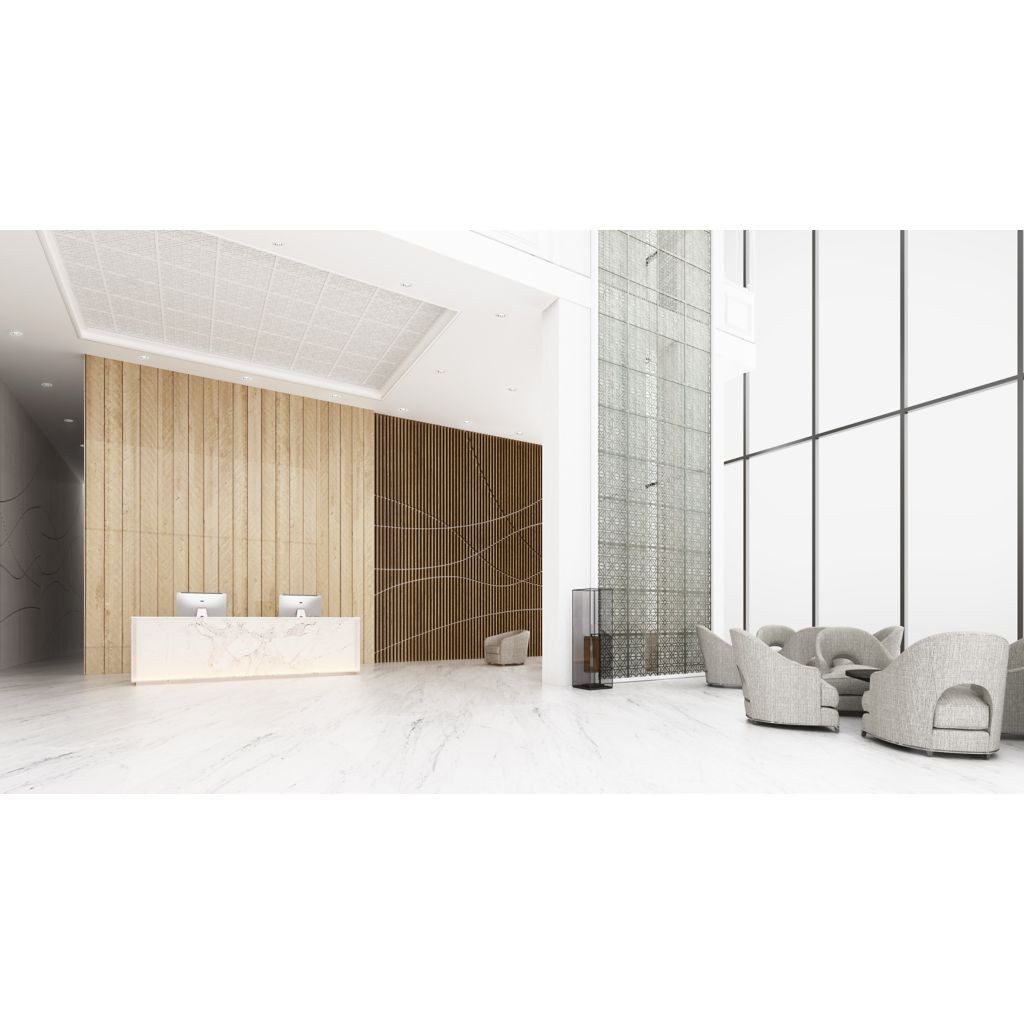

• Reception Areas
• Professional Commercial Spaces
