Philips CoreLine Tempo Large BVP130 LED Floodlight
The Philips CoreLine Tempo Large BVP130 is a powerful professional LED floodlight for sports fields, industrial sites, and other large outdoor areas. The series combines high light output with energy-efficient LED technology, rugged protection, and a variety of professional light distributions.
CoreLine Tempo Large was developed as an efficient one-to-one replacement for conventional floodlights up to 400 W HPI-T. As a result, existing installations can often be modernized while retaining the poles and a large portion of the electrical infrastructure.
Up to 30,000 lumens
The current BVP130 series offers various light outputs for a wide range of applications. Standard models are available with, among other features, 16,000, 21,000, and 26,000 lumens.
In addition, newer configurations of 30,000 lumens available. This means that CoreLine Tempo Large can also be used in locations where high illuminance or a greater mounting height is required.
Up to approximately 150 lm/W
Current CoreLine Tempo Large models offer significantly higher efficiency than previous generations. For example, a current 16,000-lumen model consumes only 109 W, accounting for approximately 150 lm/W.
For example, other current configurations deliver 21,000 lumens at 141 W and 26,000 lumens at 182 W. As a result, the series combines high light output with energy efficiency.
Symmetrical and Asymmetrical Optics
CoreLine Tempo Large is available with a variety of high-quality light distributions. For example, both both symmetrical and asymmetrical designs available.
With an asymmetrical light distribution, light can be directed across a site, a building facade, or a playing field. A symmetrical optical system, on the other hand, is suitable when uniform illumination around the fixture is desired.
3,000 K and 4,000 K
The standard current models are mainly available in 4,000 K. For project-specific configurations, Signify also offers options in 3,000 K.
This allows the light color to be tailored to the application, the surroundings, and any requirements regarding light pollution or appearance.
Suitable for renovation projects
CoreLine Tempo Large is specifically designed for the retrofit of existing floodlight systems. This allows conventional HPI-T fixtures to be replaced with LED fixtures without always requiring a completely new pole or power supply system.
This can reduce installation time and make the switch to energy-efficient LED lighting easier.
DALI Options for Professional Lighting Control
In addition to standard on/off models, Signify also offers configurations for projects with DALI control. This allows the lighting to be integrated into professional lighting control systems.
This allows light levels to be adjusted based on how the area is used and further optimizes energy consumption.
IP66 and IK08
The rugged aluminum housing offers IP66 protection dust-proof and resistant to powerful water jets. In addition, the fixture has an impact resistance of IK08.
As a result, CoreLine Tempo Large is suitable for long-term professional outdoor use in a variety of weather conditions.
Surge Protection
Current models offer protection against voltage spikes up to 6 kV differential and 8 kV common-mode. This helps protect electronic components from voltage spikes in professional outdoor installations.
Easy installation

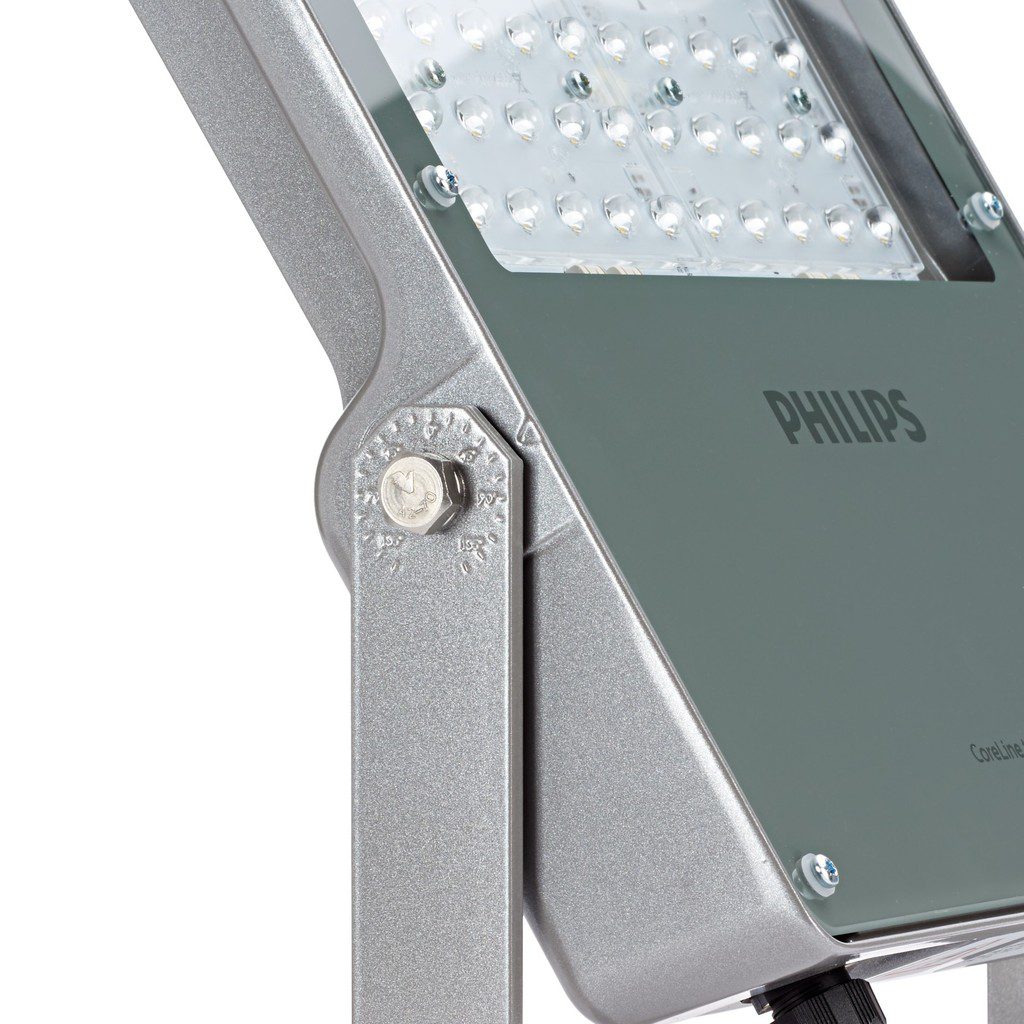

The universal U-shaped mounting bracket allows for precise aiming of the floodlight. In addition, current models feature an external connector for quick electrical connection.
This allows the installer to efficiently install and adjust the CoreLine Tempo Large during both new construction and renovation projects.
Long service life
Signify specifies a service life of approximately for the CoreLine Tempo Large family 75,000 hours at L80 under the specified conditions.
Current BVP130 models also come with 5-year warranty.
Applications

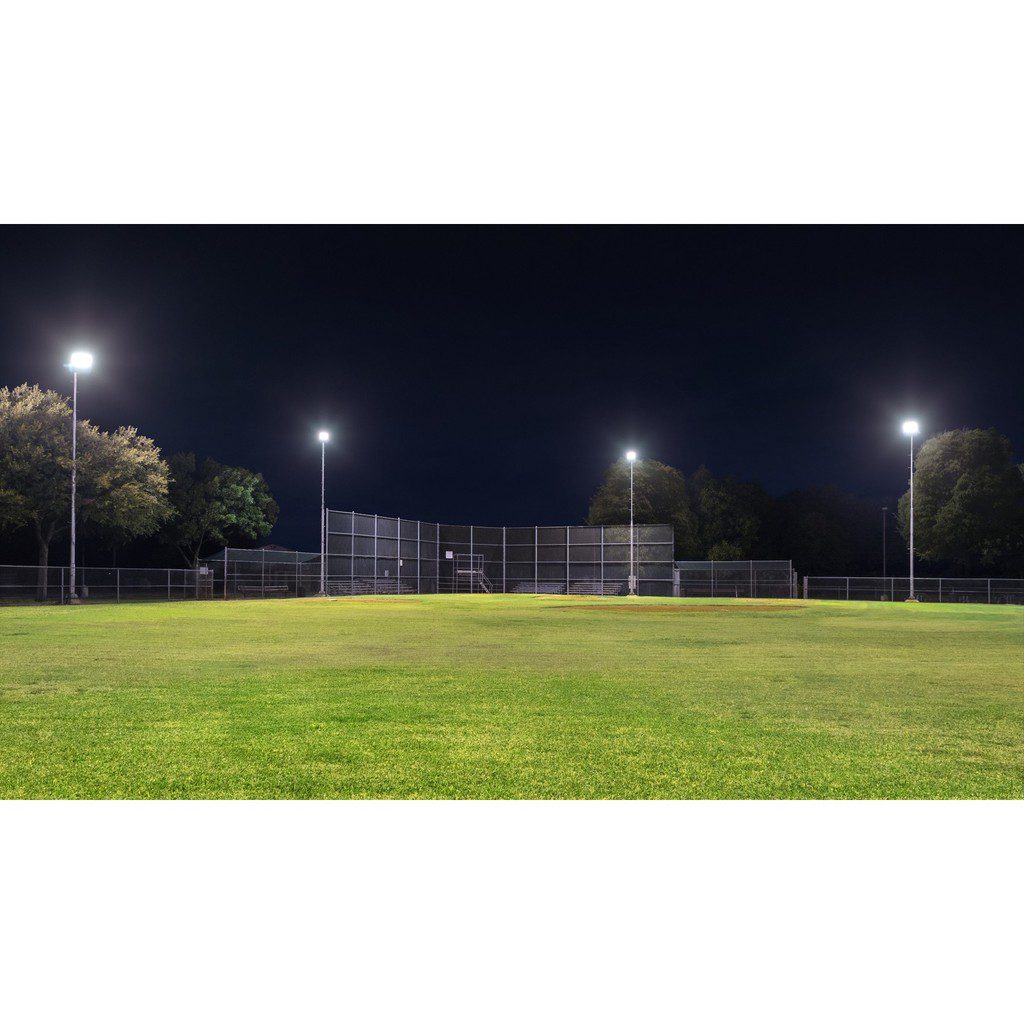

- Sports Facilities
- Recreational sports fields
- Business Parks
- Facades
- Security Lighting
- Billboards
