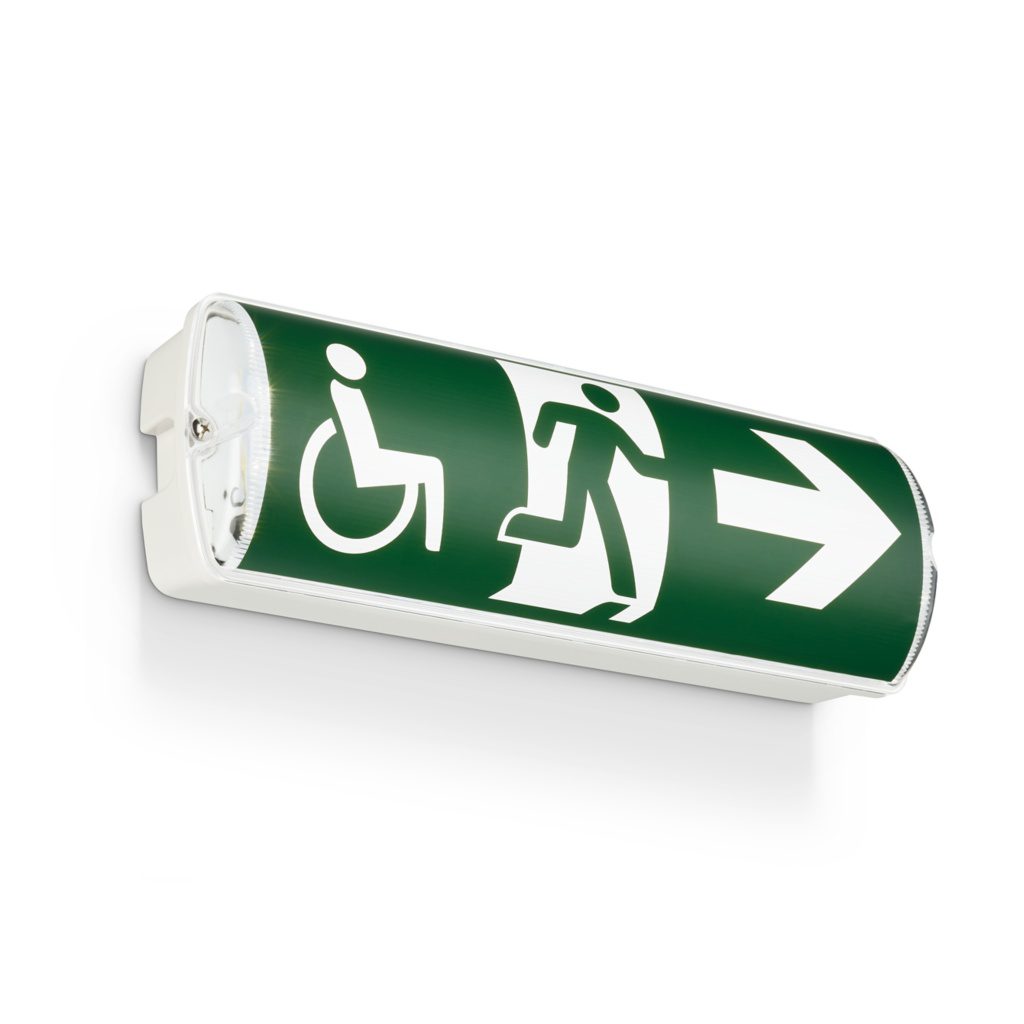

Philips Noodschot Wireless EM253C / EM254C – Smart Emergency Lighting with Interact
The Philips Noodschot Wireless EM253C / EM254C combines rugged LED emergency lighting with wireless monitoring and centralized management. The fixtures are designed for professional buildings where emergency lighting must function reliably and can be efficiently tested, monitored, and maintained.
The series consists of the EM253C, with 220 lumens, and the powerful EM254C High Output, with 700 lumens. Both models offer 3 hours of emergency operation and feature wireless connectivity for integration with the Interact Building Manager system.
Wireless Management with Interact
Thanks to Interact Ready connectivity, emergency lighting fixtures can be wirelessly integrated into a central management system. This allows building managers to monitor the status of the emergency lighting, perform automatic tests, and view reports on the installation via a secure cloud platform.
The wireless functionality relates to communication, monitoring, and management. The fixtures are typically connected to the electrical system and feature a built-in battery for emergency operation in the event of a power outage.
3 hours of reliable emergency service
In the event of a power outage, the fixtures will continue to operate for up to 3 hours. This makes the EM253C and EM254C suitable for escape routes, emergency exits, and other locations where reliable emergency lighting is essential.
EM253C and EM254C High Output
The Philips Noodschot wireless series consists of two models. The EM253C delivers 220 lumens and offers a compact solution for standard emergency lighting. The EM254C High Output delivers 700 lumens and is designed for situations where significantly higher light output is required.
- EM253C: 220 lumens, 5 W, 5000 K
- EM254C High Output: 700 lumens, 5 W, 5000 K
IP65 and IK08 rated
With a IP65 rating The fixtures are protected against dust and water jets. In addition, the IK08 classification for high mechanical impact resistance. This makes this emergency lighting suitable for more demanding professional environments.
Automatic Self-Test
The emergency lights support a programmed automatic self-test via DALI or a compatible wireless lighting control system. This allows periodic function tests to be automated and centrally logged, significantly simplifying the management of larger emergency lighting systems.
Centralized Monitoring and Reporting
With Interact Building Manager, general lighting and emergency lighting can be monitored from a single interface. This makes it possible to check the status of fixtures, plan maintenance more efficiently, and access test results centrally.
Flexible installation
The fixtures can be mounted on the ceiling or against the wall. The rugged polycarbonate housing makes this series suitable for a wide range of professional applications.
Applications
- Evacuation Routes and Emergency Exits
- Hallways and common areas
- Offices
- Stores and Retail
- Hotels
- Cafés and restaurants
- Commercial Buildings
- Buildings with Centralized Lighting Control
Key Benefits
- 3 hours of independent emergency operation
- EM253C with 220 lumens
- EM254C High Output with 700 lumens
- 5,000 K color temperature
- IP65 protection against dust and water jets
- IK08 mechanical protection
- Interact Ready Connectivity
- Wireless Monitoring and Management
- Scheduled Automatic Self-Test
- Wall or ceiling mounting
- 5-year Philips warranty
